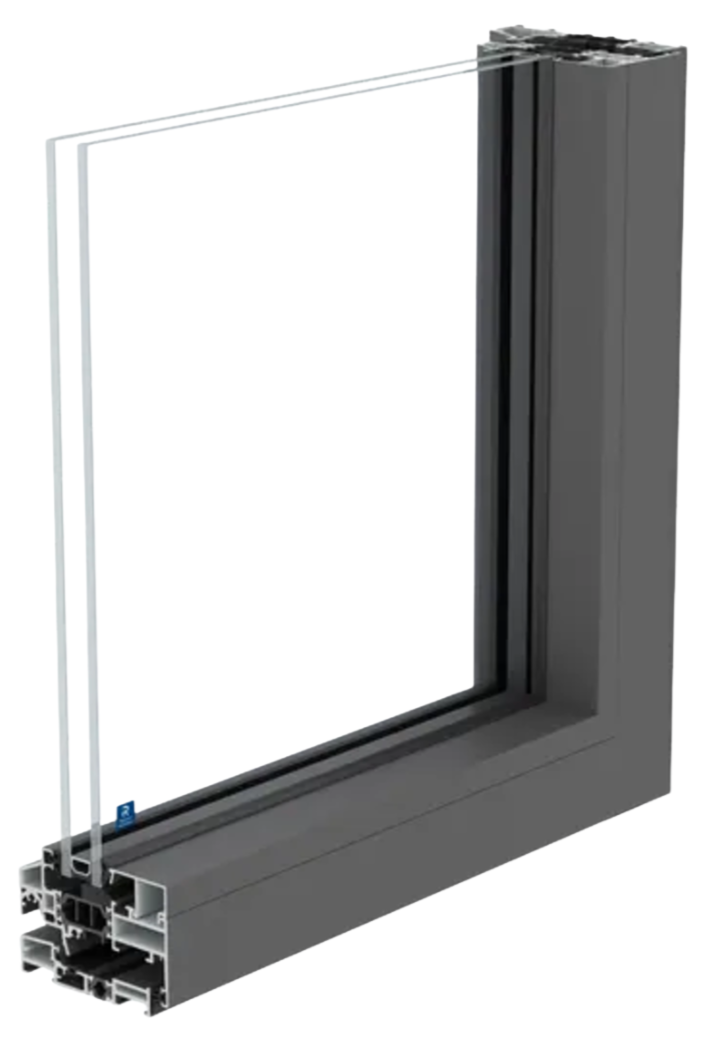

ALU-Ultra Slimline 38

STL-Ultraslim 38 offers an ultra-slim, steel-look aluminium solution that combines high insulation, refined design and robust security for contemporary new-builds and renovation projects

Aluminum Look Book

Features of

ALU-Masterline 8

Profile material: aluminum

Thermal insulation Uf: 1.6 W/m²K
Inward opening door setup: Ug 0.6 W/m²K, warm edge spacer, 1.23 x 2.18 m, 24 mm glass, 103 mm sight line
Overall door insulation Ud: 0.97 W/m²K
·Air tightness: Class 4 (600 Pa)
·Water tightness: Class 9A (600 Pa)
Wind load resistance: Class C3 (1200 Pa)
·Burglar resistance: RC2
Max vent height: 2800 mm (110.24 in)
Max vent width: 1200 mm (47.24 in)
Min inward-opening frame width: 38.5 mm (1.52 in)
·Min inward-opening vent width: 23.1 mm (0.91 in)

Concealed hinges optional
Motorized operation with integrated, concealed design is available
Profile finishes: RAL colors and metallic Super Corrosion Resistant (SCR) fishes available
